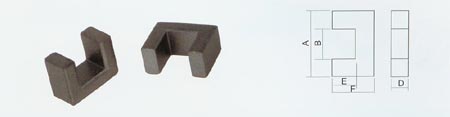

UF CORES |
 |
| CORES |
DIMENSIONS(mm) |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
| A |
B |
D |
E |
F |
C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
| UF6.8 |
6.8¡À0.15 |
2.8¡À0.1 |
3.5¡À0.1 |
2.7¡À0.15 |
4.7¡À0.15 |
3.24 |
7.0 |
22.7 |
159 |
0.8 |
| UF9.8 |
9.8¡À0.1 |
4.2¡À0.2 |
2.7¡À0.1 |
4.2¡À0.15 |
7.1¡À0.1 |
4.46 |
7.7 |
34.1 |
261 |
1.3 |
| UF10.5 |
10.5¡À0.3 |
5.2min |
5.0¡À0.2 |
5.0 +0.5 |
7.8¡À0.3 |
3.24 |
12.4 |
40.5 |
505 |
2.5 |
| UF12 |
12¡À0.3 |
4.0min |
4.0 +0.1 -0.2 |
5.0¡À0.2 |
9.0 +0.5 -0.1 |
2.48 |
16.6 |
41.3 |
687 |
3.5 |
| UF15 |
15¡À0.3 |
5.2min |
6.4¡À0.2 |
6.5¡À0.2 |
11.4¡À0.2 |
1.66 |
31.2 |
51.8 |
1614 |
8.6 |
| UF15.6 |
15.6¡À0.4 |
6.6min |
5.9¡À0.2 |
6.2¡À0.25 |
9.9¡À0.25 |
2.07 |
24.4 |
50.5 |
1233 |
6.4 |
| UF16 |
16.1¡À0.4 |
6.7min |
6 +0.1 -0.3 |
6.2¡À0.25 |
10.5¡À0.2 |
2.00 |
25.6 |
51.2 |
1310 |
6.7 |
| UF16-1 |
16¡À0.2 |
6.7min |
6¡À0.2 |
6.3¡À0.2 |
9.8¡À0.2 |
2.07 |
24.5 |
50.7 |
1243 |
6.6 |
| UF16.5 |
16.5¡À0.42 |
6.1min |
6.5¡À0.32 |
6.7¡À0.3 |
11.9¡À0.3 |
1.64 |
33.8 |
55.3 |
1870 |
10.5 |
| UF19.5 |
19.55¡À0.4 |
7.1¡À0.3 |
4.75 |
7.55¡À0.25 |
13.75¡À0.25 |
2.17 |
29.5 |
64.0 |
1884 |
9.6 |
| UF20 |
20.8¡À0.6 |
6.4¡À0.4 |
7.5¡À0.25 |
8.3¡À0.3 |
15.6¡À0.2 |
1.27 |
54.3 |
68.7 |
3732 |
19.0 |
| UF73 |
73¡À1.0 |
45min |
13.7¡À0.3 |
19.5¡À0.5 |
33.5¡À0.5 |
0.43 |
324.7 |
139.3 |
45229 |
206 |
| UF120 |
120¡À3 |
60min |
40¡À1.0 |
88¡À1.5 |
118¡À1.5 |
¡¡ |
¡¡ |
¡¡ |
¡¡ |
340 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
