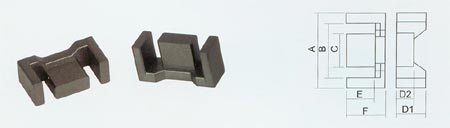

EFD CORES |
 |
| CORES |
DIMENSIONS(mm) |
| A |
B |
C |
D 1 |
D 2 |
E |
F |
| EFD15 |
14.97¡À0.3 |
11.0¡À0.25 |
5.3¡À0.15 |
4.6¡À0.15 |
2.3¡À0.1 |
5.5¡À0.15 |
7.51¡À0.2 |
| EFD20 |
20¡À0.55 |
15.4¡À0.5 |
8.9¡À0.2 |
6.65¡À0.2 |
3.6¡À0.2 |
7.7¡À0.25 |
10¡À0.25 |
| EFD20B |
20¡À0.55 |
15.4¡À0.5 |
8.9¡À0.2 |
5.4¡À0.1 |
3.6¡À0.15 |
9.3¡À0.15 |
11.5¡À0.15 |
| EFD25 |
25¡À0.4 |
19¡À0.3 |
11.4¡À0.2 |
9.1¡À0.2 |
5.2¡À0.2 |
9.3¡À0.2 |
12.5¡À0.2 |
| EFD25A |
25.2¡À0.4 |
19.1min |
8.8¡À0.3 |
12.7 +0 -0.5 |
8.3¡À0.3 |
9.3 +0.5 -0 |
12.8 +0 -0.4 |
| EFD30 |
30¡À0.5 |
23¡À0.3 |
14.6¡À0.25 |
9.1¡À0.2 |
4.9¡À0.15 |
11.3¡À0.2 |
15¡À0.15 |
| CORES |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
AL ¡À 25%(nH/N 2 ) |
| C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR2KBF1 |
JR3.5K |
| EFD15 |
2.27 |
15 |
34.0 |
510 |
2.5 |
850 |
¡¡ |
| EFD20 |
1.52 |
31 |
47.0 |
1460 |
7.0 |
1200 |
¡¡ |
| EFD20B |
1.98 |
25.84 |
51.22 |
1323.5 |
7.1 |
1000 |
¡¡ |
| EFD25 |
0.98 |
58 |
57 |
3300 |
17 |
2000 |
¡¡ |
| EFD25A |
0.8 |
73.1 |
58.9 |
4300 |
24 |
2300 |
¡¡ |
| EFD30 |
0.99 |
69 |
68 |
4700 |
24 |
2300 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
