EDÐÍ´Åо(ED CORES) |
 |

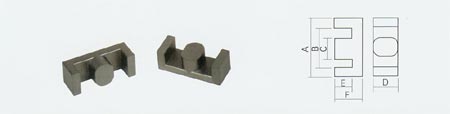

CORES
|
DIMENSIONS(mm) |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
| A |
B |
C |
D |
E |
F |
C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
| ED28 |
28¡À0.5 |
20.8min |
8.5¡À0.2 |
11.8¡À0.2 |
7.15¡À0.15 |
10.9¡À0.15 |
0.568 |
86.1 |
50.5 |
4350 |
25 |
| ED29 |
29.3¡À0.5 |
21.5min |
8.5¡À0.3 |
11.6¡À0.3 |
11.0¡À0.3 |
14.6¡À0.3 |
0.826 |
84.1 |
69.5 |
5850.0 |
30.0 |
| ED33 |
33.3¡À0.3 |
25.6min |
8.4¡À0.2 |
11.6¡À0.2 |
7.1¡À0.2 |
10.7¡À0.2 |
0.786 |
71.12 |
55.91 |
3976.9 |
25.2 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
