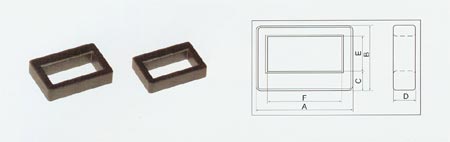

FFT CORES |
 |
| CORES |
DIMENSIONS(mm) |
| A |
B |
C |
D |
E |
F |
| FT20 |
20.6¡À0.3 |
14.1¡À0.3 |
4.1¡À0.2 |
4.6¡À0.2 |
7.35min |
15.7min |
| FT25 |
25.6¡À0.4 |
17.6¡À0.3 |
3.4¡À0.15 |
5.2¡À0.25 |
8.70min |
19.30min |
| FT30 |
30.0¡À0.4 |
19.8¡À0.3 |
4.2¡À0.15 |
6.4¡À0.25 |
8.90min |
22.40min |
| CORES |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
AL ¡À 25%(nH/N 2 ) |
| C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR5KS |
JR7KS |
JR10KS |
| FT20 |
4.11 |
13 |
53 |
688 |
3.8 |
1500 |
2100 |
2800 |
| FT25 |
3.77 |
18 |
68 |
1203 |
5.85 |
¡¡ |
2300 |
3300 |
| FT30 |
2.85 |
27 |
77 |
2068 |
11.05 |
¡¡ |
3100 |
4400 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
