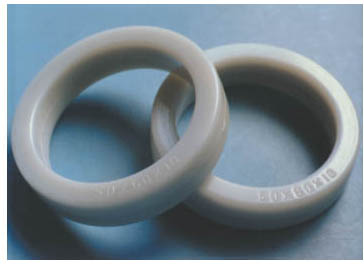

Mn-Zn Power Ferrite Material Characteristics

Characteristics			Unit	JR2KBF	JR2KBF 1	JR2KBF 2	JR2KBF 3	JR3.5K
μi Initial Permeability				2500±25%	2300±25%	2400±25%	1400±25%	3500±25%
μa Amplitude permeablility				3200min	3000min	3000min
Bs Saturation magnetic fluxdensity		25 o C	mT	510	510	510	470	470
		100 o C	mT	390	390	380	370	370
				(1194A/m)	(1194A/m)	(1194A/m)	(1600A/m)	(1194A/m)
Br Remanence		25 o C	mT	117	95	110	120	120
Hc Coercivity		25 o C	A/m	12	14	13	12	12
Pcv Power Loss	25kHz 200mT	25 o C	KW/m 3	130	120			120
	25kHz 200mT	100 o C	KW/m 3	100	70			150
	100kHz 200mT	25 o C	KW/m 3	700	600	600		600
	100kHz 200mT	100 o C	KW/m 3	600	410	300		100
	500kHz 5 0mT	25 o C	KW/m 3				130
	500kHz 5 0mT	100 o C	KW/m 3				80
ρ Electrical resistivity			Ω.m	9	6.5	6.5		6.5
Tc Curie temperature			o C	>220	>215	>215	>230	>215
d Density			kg/m 3	4.8×10 3	4.8×10 3	4.8×10 3	4.8×10 3	4.8×10 3

Characteristics	Unit	JR5K	JR7K	JR10K	JR5KS	JR7KS	JR10KS
μi Initial Permeability		5500±25%	7500±25%	10000±30%	5300±25%	7500±25%	10000±25%
tg δ/μi Relative loss factor	×10 -6	≤15 (100kHz)	≤7 (100kHz)	≤7 (100kHz)	≤10 (100kHz)	≤30 (100kHz)	≤8 (100kHz)
αμr Relative temperature	×10 -6 1/K	0.5～1.5 (20～60 o C)	0.5～2.0 (20～60 o C)	-0.5～1.5 (20～60 o C)	-0.5～1.5 (20～60 o C)	-0.5～2.0 (20～60 o C)	-0.5～2.0 (20～60 o C)
Bs Saturation magnetic fluxdensity	mT	420	400	400	410	410	380
Br Remanence	mT	80	90	90	70	80	100
Hc Coercivity	A/m	8	10.4	7.2	6	6	4.4
DF Disaccommodation factor	10 -6	≤3	≤3	≤2	≤3	≤3	≤3
ρ Electrical resistivity	Ω.m	0.3	0.3	0.15	1.0	0.2	0.2
Tc Curie temperature	o C	>150	>140	>120	>150	>130	>120
d Density	kg/m 3	4.9×10 3	4.9×10 3	4.9×10 3	4.9×10 3	4.9×10 3	4.9×10 3

注Note：① The values were obtained with toroidal cores at room temerature unless otherwise shown.
② JR2KBF、JR2KBF 1 and JR2KBF 2 are the same as the PC30,PC40,PC44 materials. JR2KBH、JR2KBF 2 JR2KBF、JR2KBF,JR2KBF 2 are the same as the HV22,HV45 materials.
JRXXS Series is high μi and high impedance material.
