EPC CORES
|
 |
| CORES |

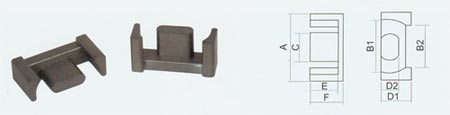

DIMENSIONS(mm) |
| A |
B 1 |
B 2 |
C |
D 1 |
D 2 |
E |
F |
| EPC13 |
13.2¡À0.25 |
10.7¡À0.2 |
8.4¡À0.2 |
5.6¡À0.2 |
4.6¡À0.15 |
2.1¡À0.1 |
4.6¡À0.2 |
6.6¡À0.2 |
| EPC17 |
17.5¡À0.3 |
14.5¡À0.2 |
12¡À0.5 |
7.7¡À0.15 |
6¡À0.15 |
2.8¡À0.1 |
6.05¡À0.2 |
8.55¡À0.2 |
| EPC19 |
19.1¡À0.5 |
15.8min |
13.6¡À0.5 |
8.5¡À0.2 |
6¡À0.2 |
2.5¡À0.2 |
7.25¡À0.2 |
9.75¡À0.2 |
| EPC25 |
25.1¡À0.3 |
21.2¡À0.4 |
17.5¡À0.3 |
11.2¡À0.15 |
8¡À0.2 |
6.5¡À0.2 |
9.0 +0.3 -0 |
12.5¡À0.2 |
| EPC30 |
30.1¡À0.35 |
23.6¡À0.4 |
20¡À0.3 |
15¡À0.2 |
8.0¡À0.2 |
4¡À0.2 |
13¡À0.2 |
17.5¡À0.2 |
| CORES |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
AL ¡À 25%(nH/N 2 ) |
| C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR2KBF1 |
JR3.5K |
| EPC13 |
2.46 |
12.5 |
30.6 |
382 |
2.1 |
850 |
1050 |
| EPC17 |
1.76 |
22.8 |
40.2 |
917 |
4.5 |
1150 |
1550 |
| EPC19 |
2.03 |
22.7 |
46.1 |
1047 |
5.3 |
930 |
1300 |
| EPC25 |
1.28 |
46.4 |
59.2 |
2748 |
13.0 |
1500 |
2100 |
| EPC30 |
1.34 |
61.0 |
81.6 |
4949 |
23.0 |
1600 |
2100 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
