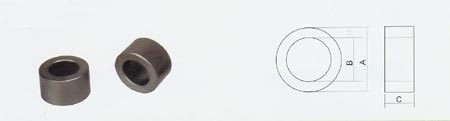

H CORES

CORES DIMENSIONS(mm) EFFECTIVE¡¡PARAMETERS WEIGHT (g)
A B C C 1 (mm -1 ) Ae(mm 2 ) Le(mm) Ve(mm 3 )
H2.5¡Á1.3¡Á1.3 2.54¡À0.3 1.27¡À0.2 1.27¡À0.2 7.14 0.8 5.5 4 0.02
H3¡Á1.2¡Á1.2 3.05¡À0.3 1.27¡À0.2 1.27¡À0.2 5.65 1.8 6.0 6 0.03
H3¡Á1.8¡Á2 3.05¡À0.3 1.78¡À0.2 2¡À0.2 5.85 1.2 7.2 9 0.04
H3¡Á1.8¡Á1.5 3.43¡À0.3 1.78¡À0.2 1.52¡À0.2 6.31 1.2 7.6 9 0.03
H3.9¡Á1.8¡Á2 3.94¡À0.3 1.78¡À0.2 2¡À0.2 3.95 2.1 8.1 17 0.09
H4¡Á2¡Á1 4¡À0.3 2¡À0.2 1¡À0.2 9.06 1.0 8.7 8 0.05
H4¡Á2¡Á2 4¡À0.3 2¡À0.2 2¡À0.2 4.53 2.0 8.7 17 0.09
H5.8¡Á3¡Á3 5.85¡À0.13 3.05¡À0.13 3.05¡À0.13 3.16 4.1 13.0 54 0.3
H7.6¡Á3.5¡Á3 7.6¡À0.2 3.5¡À0.2 3¡À0.2 2.71 5.9 15.8 92 0.5
H8¡Á4¡Á2 8¡À0.3 4¡À0.3 2¡À0.2 4.53 3.8 17.4 67 0.4
H8¡Á4¡Á3 8¡À0.3 4¡À0.3 3¡À0.2 3.02 5.8 17.4 100 0.5
H8¡Á4¡Á4 8¡À0.3 4¡À0.3 4¡À0.2 2.27 7.7 17.4 134 0.7
H9.1¡Á5.1¡Á4.35 9.1¡À0.3 5.1¡À0.3 4.35¡À0.2 2.49 8.5 21.1 179 0.9
H10¡Á6¡Á4 10¡À0.3 6¡À0.3 4¡À0.2 3.08 7.8 24.1 1889 1.0
H12.7¡Á7.9¡Á6 12.7¡À0.2 7.92¡À0.2 6.35¡À0.2 2.10 14.9 31.2 4659 2.2
H14¡Á9¡Á5 14¡À0.4 9¡À0.3 5¡À0.2 2.84 12.3 35.0 439 2.2
H16¡Á12¡Á8 16¡À0.4 12¡À0.3 8¡À0.2 2.73 15.9 43.4 689 3.4
H16¡Á7¡Á20 16¡À0.4 7.0¡À0.3 20¡À0.2 0.38 85.1 32.3 2749 15.6
H16¡Á9¡Á17 9.0¡À0.3 17.0¡À0.2 0.64 57.9 37.2 2152 11.2
H18.5¡Á11¡Á28.5 18.5¡À0.5 11¡À0.4 28.5¡À0.4 0.42 104.5 44.3 4631 23.8
H18¡Á10¡Á10 18¡À0.4 10¡À0.3 10¡À0.4 1.07 38.9 41.6 1615 8.4
H18¡Á12¡Á8 18¡À0.4 12¡À0.3 8¡À0.4 1.94 23.7 45.9 1086 5.4
H19¡Á13¡Á11 19¡À0.4 13¡À0.3 11¡À0.3 2.13 21.9 46.6 1018 8.0
H20¡Á10¡Á10 20¡À0.4 10¡À0.3 10¡À0.3 0.91 48.1 43.6 2093 11.3
H22¡Á14¡Á6.5 22¡À0.4 14¡À0.3 6.5¡À0.3 2.14 25.6 54.7 1397 7.1
H25¡Á15¡Á7.5 25¡À0.5 15¡À0.3 7.5¡À0.3 1.64 36.7 60.2 2208 11.3
H25¡Á15¡Á10 25¡À0.5 15¡À0.3 10¡À0.3 1.23 48.9 60.2 2944 15.1
H25¡Á15¡Á12.5 25¡À0.5 15¡À0.3 12.5¡À0.3 0.99 61.2 60.2 3609 18.8
H28¡Á16¡Á13 28¡À0.5 16¡À0.3 13¡À0.3 0.86 76.0 65.6 4988 25.9
H31¡Á19¡Á7 31¡À0.5 19¡À0.5 7¡À0.3 1.83 41.2 75.5 3108 15.8
H36¡Á23¡Á15 36¡À1.0 23¡À0.8 15¡À0.5 0.94 95.9 89.7 8596 43.4
H38¡Á19¡Á13 38¡À1 19¡À0.6 13¡À0.5 0.60 129.4 77.7 10057 53.1
H38¡Á34¡Á16 38¡À1 34¡À0.8 16¡À0.5 3.53 32.0 112.9 3608 17.4
H47¡Á27¡Á15 47¡À0.8 27¡À0.6 15¡À0.5 0.76 146.2 110.5 16156 83.7
H80¡Á30¡Á3 80¡À2 30¡À2 3¡À0.3 2.14 69.3 147.9 10245 62.2

CORES AL ¡À 25%(nH/N 2 )
JR2K JR3.5K JR5K JR7K JR10K
H2.5¡Á1.3¡Á1.3 300 500 800 1300 1700
H3¡Á1.2¡Á1.2 400 600 1100 1600 2200
H3¡Á1.8¡Á2 400 600 1000 1600 2100
H3¡Á1.8¡Á1.5 300 500 900 1400 1900
H3.9¡Á1.8¡Á2 600 900 1500 2300 3100
H4¡Á2¡Á1 200 400 600 1000 1300
H4¡Á2¡Á2 500 800 1300 2000 2700
H5.8¡Á3¡Á3 700 1100 1900 2900 3900
H7.6¡Á3.5¡Á3 900 1300 2300 3400 4600
H8¡Á4¡Á2 500 800 1300 2000 2700
H8¡Á4¡Á3 800 1200 2000 3100 4100
H8¡Á4¡Á4 1100 1600 2700 4100 5500
H9.1¡Á5.1¡Á4.35 1000 1500 2500 3700 5000
H10¡Á6¡Á4 800 1200 2000 3000 4000
H12.7¡Á7.9¡Á6 1100 1700 2900 4400 5900
H14¡Á9¡Á5 800 1300 2200 3300 4400
H16¡Á12¡Á8 900 1300 2300 3400 4600
H16¡Á7¡Á20 6600 9900 16500 24800 33000
H16¡Á9¡Á17 3900 5800 9700 14600 19500
H18.5¡Á11¡Á28.5 5900 8800 14800 22200 29600
H18¡Á10¡Á10 2300 3500 5800 8800 11700
H18¡Á12¡Á8 1200 1900 3200 4800 6400
H19¡Á13¡Á11 1600 2500 4100 6200 8300
H20¡Á10¡Á10 2700 4100 6900 10300 13800
H22¡Á14¡Á6.5 1100 1700 2900 4400 5800
H25¡Á15¡Á7.5 1500 2200 3800 5700 7600
H25¡Á15¡Á10 2000 3000 5100 7600 10200
H25¡Á15¡Á12.5 2500 3800 6300 9500 12700
H28¡Á16¡Á13 2900 4300 7200 10900 14500
H31¡Á19¡Á7 1300 2000 3400 5100 6800
H36¡Á23¡Á15 2600 4000 6700 10000 13400
H38¡Á19¡Á13 3600 5400 9000 13500 18000
H38¡Á34¡Á16 700 1000 1700 2600 3500
H47¡Á27¡Á15 3300 4900 8300 12400 16600
H80¡Á30¡Á3 1100 1700 2900 4400 5800
In the table no size, may attempt the processing with provided samples manufacture according to the customer
