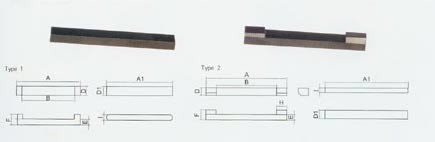

CI ÐÍ´Åо(CI CORES) |
 |
| CORES |
DIMENSIONS(mm) |
| A |
B |
D |
E |
F |
| CI8 |
26.00¡À0.25 |
23.60¡À0.25 |
5.50 +0.12 -0.15 |
0.90 +0.08 -0.05 |
2.20¡À0.08 |
| CI8.0A |
26.00¡À0.25 |
23.30min |
5.50¡À0.15 |
1.22¡À0.05 |
2.30¡À0.05 |
| CI8.3 |
28.80¡À0.50 |
21.60min |
2.27¡À0.15 |
2.05¡À0.10 |
3.60¡À0.075 |
| CI8.5 |
28.80¡À0.50 |
21.60min |
3.20¡À0.10 |
2.35¡À0.10 |
3.60¡À0.075 |
| CI10 |
23.10¡À0.25 |
20.30¡À0.20 |
7.40¡À0.15 |
1.10 +0.08 -0.05 |
2.30¡À0.08 |
| CI17 |
22.90¡À0.25 |
18.90¡À0.20 |
13.25 +0.15 -0.20 |
2.00 +0.10 -0.15 |
3.70¡À0.10 |
| CI25 |
24.64 +0.20 -0.15 |
21.46¡À0.15 |
5.84¡À0.10 |
1.60¡À0.05 |
3.45¡À0.10 |
CORES |
DIMENSIONS(mm) |
| H |
A1 |
D1 |
I |
Type |
| CI8 |
¡¡ |
26.00¡À0.25 |
5.50 +0.12 -0.15 |
1.05¡À0.05 |
1 |
| CI8.0A |
¡¡ |
26.50¡À0.25 |
5.50¡À0.15 |
1.05¡À0.05 |
1 |
| CI8.3 |
3.40¡À0.10 |
29.50¡À0.50 |
3.15¡À0.15 |
1.75¡À0.05 |
2 |
| CI8.5 |
3.40¡À0.10 |
29.50¡À0.50 |
3.15¡À0.10 |
2.20¡À0.05 |
2 |
| CI10 |
¡¡ |
23.10¡À0.25 |
7.40¡À0.15 |
1.20¡À0.05 |
1 |
| CI17 |
¡¡ |
22.90¡À0.25 |
3.25 +0.15 -0.20 |
2.00¡À0.05 |
1 |
| CI25 |
¡¡ |
25.15¡À0.15 |
5.84¡À0.10 |
1.80 +0.04 -0.05 |
1 |
| CORES |
EFFECTIVE¡¡PARAMETERS |
WEIGHT (g) |
AL ¡À 25%(nH/N 2 ) |
| C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR2KBF1 |
| CI8 |
9.55 |
5.49 |
52.51 |
216.84 |
1.37 |
265 |
| CI8.0A |
9.10 |
5.8 |
53.1 |
310.00 |
1.49 |
280 |
| CI8.3 |
9.71 |
5.69 |
55.27 |
314.49 |
1.61 |
300 |
| CI8.5 |
7.15 |
7.75 |
55.44 |
429.66 |
2.02 |
400 |
| CI10 |
6.45 |
7.52 |
48.50 |
585.26 |
1.95 |
380 |
| CI17 |
1.79 |
26.9 |
48.19 |
1669.47 |
6.20 |
1392 |
| CI25 |
5.30 |
9.86 |
52.25 |
515.18 |
2.56 |
470 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
