RM型磁芯(RM CORES) |
 |
| CORES |

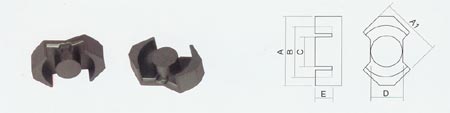

DIMENSIONS(mm) |
| A |
A 1 |
B |
C |
D |
E |
F |
| RM4 |
10.8±0.2 |
9.6±0.2 |
8.15±.015 |
3.8±0.1 |
4.5±0.1 |
3.6±0.1 |
5.2±0.1 |
| RM5 |
14.3±0.3 |
12.05±0.25 |
10.4±0.2 |
4.8±0.1 |
6.6±0.2 |
3.35±0.2 |
5.2±0.1 |
| RM6 |
17.8±0.3 |
14.4±0.3 |
12.16±0.25 |
6.26±0.15 |
8±0.2 |
3.9±0.1 |
6.2±.01 |
| RM8 |
22.8±0.3 |
19.3±0.4 |
17min |
8.5±0.2 |
10.6±0.4 |
5.7±0.2 |
8.2±0.2 |
| RM10 |
27.80±0.65 |
24.15±0.55 |
21.65±0.45 |
1065±0.20 |
6.4±0.2 |
9.3±0.15 |
| CORES |
EFFECTIVE PARAMETERS |
WEIGHT (g) |
AL ± 25%(nH/N 2 ) |
| C 1 (mm -1 ) |
Ae(mm 2 ) |
Le(mm) |
Ve(mm 3 ) |
JR2KBF1 |
JR3.5K |
JR5KS |
JR7KS |
JR10KS |
| RM4 |
1.70 |
13.00 |
22.00 |
286 |
1.7 |
1050 |
1250 |
1650 |
|
3900 |
| RM5 |
0.93 |
23.8 |
22.10 |
526 |
3.6 |
2000 |
2600 |
3500 |
5700 |
6700 |
| RM6 |
0.78 |
36.60 |
28.60 |
1050 |
5.3 |
2300 |
3100 |
4300 |
7200 |
8500 |
| RM8 |
0.59 |
64.00 |
38.00 |
2430 |
12 |
3200 |
4100 |
5600 |
9600 |
12350 |
| RM10 |
0.45 |
98.00 |
44.00 |
4310 |
22.56 |
4100 |
5500 |
7500 |
12600 |
15500 |
| In the table no size, may attempt the processing with provided samples manufacture according to the customer |
|
|
